The right fireplace mantel can make or break your entire room. A mantel that's too small looks like an afterthought, while one that's too large can overwhelm the fireplace and everything around it. The good news? Sizing a mantel correctly comes down to a few key measurements and proportion guidelines, no interior design degree required.

This guide walks you through standard mantel dimensions, how to measure your own fireplace, and the most common sizing mistakes homeowners make so you can shop with confidence.

In This Article:

• Standard Mantel Widths
• Standard Mantel Heights
• Standard Mantel Depths
• How to Measure Your Fireplace
• Mantel Proportions
• Frequently Asked Questions

Mantel width is typically the first measurement people focus on, since it has the biggest visual impact on the fireplace wall.

Here are some measurements to help guide you:

• Small fireplaces (30–36" wide openings): Look for mantels around 48” in width.
• Medium fireplaces (36–48" wide openings): Look for mantels around 60" in width.
• Large fireplaces (48"+ wide openings): Look for mantels around 72" in width.

The ideal mantel measurement is at least 3–6 inches extending beyond each side of the firebox opening or surround. This creates visual balance and ensures the mantel doesn't look like it's floating awkwardly.

Mantel height (the distance from the floor or hearth to the top of the mantel shelf) affects both safety and visual proportion.

Standard mantel heights generally fall between:

• 48–60 inches from the floor for wood-burning fireplaces (often dictated by local clearance codes)
• 42–54 inches from the floor for gas or electric fireplaces, which typically require less clearance

Because clearance requirements vary by fuel type and local building codes, always check your fireplace manufacturer’s specifications and local codes before finalizing mantel height. This is especially important for wood-burning fireplaces, where minimum clearance to combustible materials is a safety requirement, not just a design preference. If clearance is an issue, look specifically for non-combustible mantels.

Mantel depth is often overlooked, but it plays a big role in both function and safety.

• Standard depths range from 6–12 inches.
• Shallower depths (6–8") work well for smaller rooms or minimalist designs where you don't want the mantel to protrude too far into the room (and don’t plan on placing anything heavy on the mantel).
• Deeper depths (10–12") are better suited for displaying larger décor, family photos, or seasonal decorations, and tend to look more substantial on larger fireplace walls.

Keep in mind that many local codes require a minimum depth-to-height ratio from the firebox opening, particularly for wood-burning units. A qualified installer can confirm the exact clearance needed for your specific fireplace.

Before you shop for a mantel, take these five measurements:

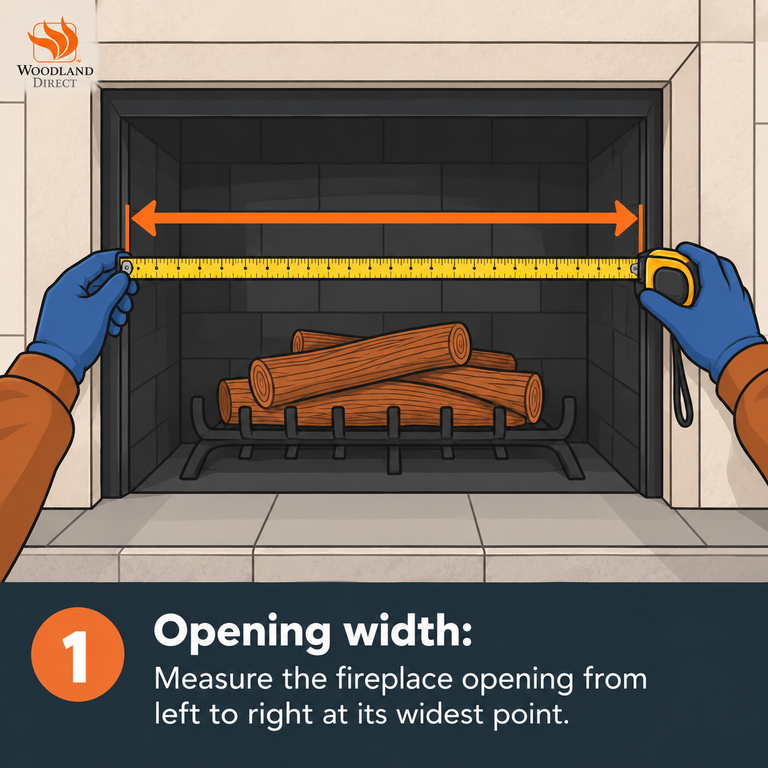

1. Opening width: Measure the fireplace opening from left to right at its widest point.

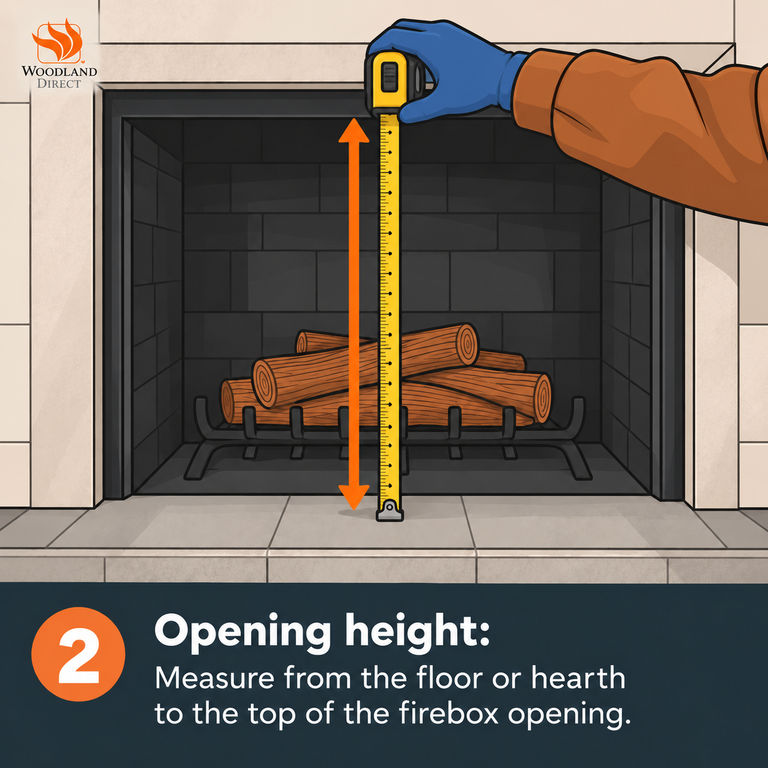

2. Opening height: Measure from the floor or hearth to the top of the firebox opening.

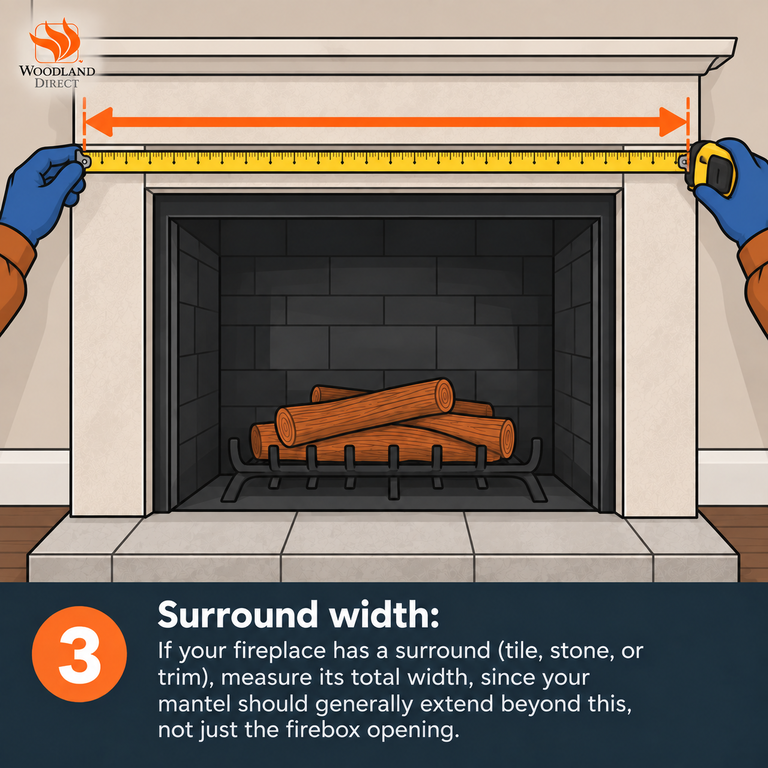

3. Surround width: If your fireplace has a surround (tile, stone, or trim), measure its total width, since your mantel should generally extend beyond this, not just the firebox opening.

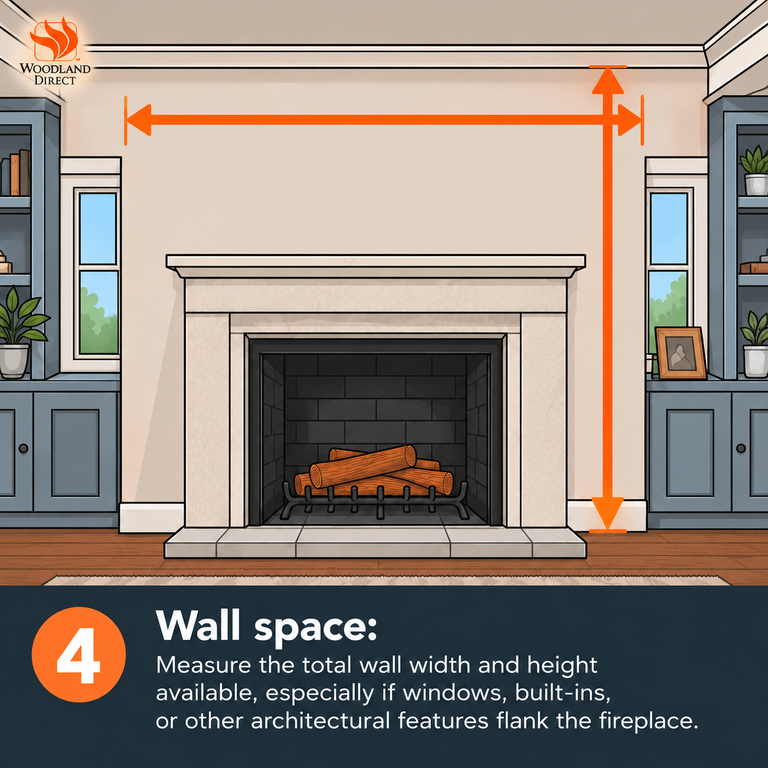

4. Wall space: Measure the total wall width and height available, especially if windows, built-ins, or other architectural features flank the fireplace.

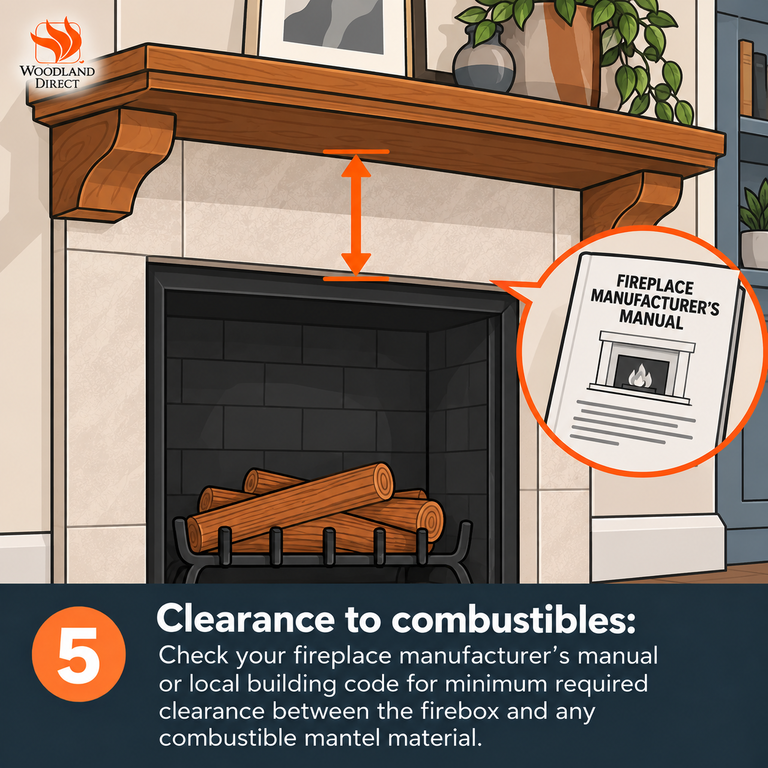

5. Clearance to combustibles: Check your fireplace manufacturer's manual or local building code for minimum required clearance between the firebox and any combustible mantel material.

Even if all your individual measurements are correct, a mantel can still look "off" if the proportions don't work together. Keep these general design ratios in mind:

• Width-to-opening ratio: The mantel shelf should extend 3–6 inches beyond each side of the firebox opening or surround, as noted above.
• Height-to-width ratio: Wider mantels generally look best with slightly more visual weight (thicker shelves, bolder corbels or legs), while narrower mantels pair well with simpler, more streamlined designs.
• Room scale: In rooms with high ceilings, consider adding overmantel elements (like a mirror, art, or additional millwork) above the mantel to fill vertical space proportionally, rather than sizing the mantel shelf itself too tall.
• Visual breathing room: Leave enough negative space above the mantel and around the sides so the fireplace doesn't feel cramped against adjacent furniture or architectural features.

Even with the right measurements, it's easy to make a mistake. Here are common problems many customers inadvertently make:

1. Choosing a mantel that's too narrow. A mantel that's the same width as the firebox opening (or narrower) often looks undersized and disconnected from the fireplace.
2. Ignoring local clearance codes. Especially with wood-burning fireplaces, skipping the clearance-to-combustibles check can create a safety hazard or code violation.
3. Forgetting about the surround. Measuring only the firebox opening — and not the full surround — often results in a mantel that doesn't fully "frame" the fireplace.
4. Overlooking ceiling height. In rooms with tall ceilings, an undersized mantel can look lost on the wall. Consider a taller design or added overmantel details to balance the space.
5. Not accounting for décor. If you plan to display a TV or artwork above the mantel, or place decorative objects on the mantel itself, make sure the depth and width can comfortably support the decor without overcrowding.
6. Mismatched style-to-proportion pairing. A heavy, ornate mantel on a small fireplace (or a slim, minimalist mantel on a large, dramatic fireplace) can throw off the visual balance of the entire room.
