49" Pre-cast Masonry Firebox Kit - Wood Burning

Name: 49" Pre-cast Masonry Firebox Kit - Wood Burning
Brand: Mason-Lite
SKU: M46600005
Price: 5450.00 USD
Availability: InStock

by Mason-Lite

Item # M46600005

FAQs

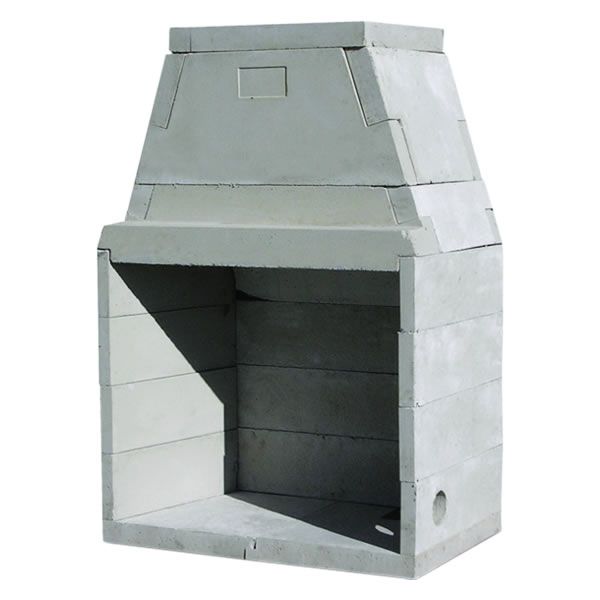

Concrete fireplace insert with tapered design, open front opening, and removable top, shown in light gray and white remove entirely or use 'surface' with black interior lining.

White acrylic rectangular soaking tub with integrated rim and remove if not obvious pattern exterior, shown during installation in basement construction setting.

White material toilet with elongated bowl and tank lid, shown in installation context with wooden frame surround.

White concrete countertop with speckled aggregate remove entirely or use 'surface', shown during installation with support forms and protective covering in wooden workshop sett

Dry composting toilet with cream-colored material base, brown remove if not obvious pattern seat cover with central opening, and "SON-JIU" branding visible on front panel.

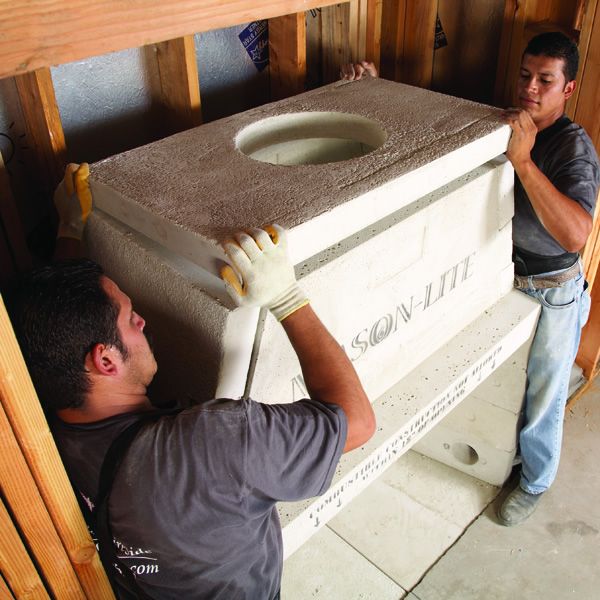

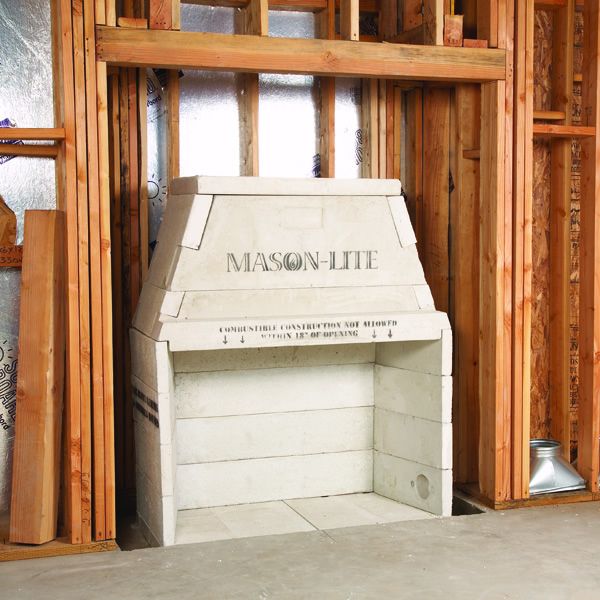

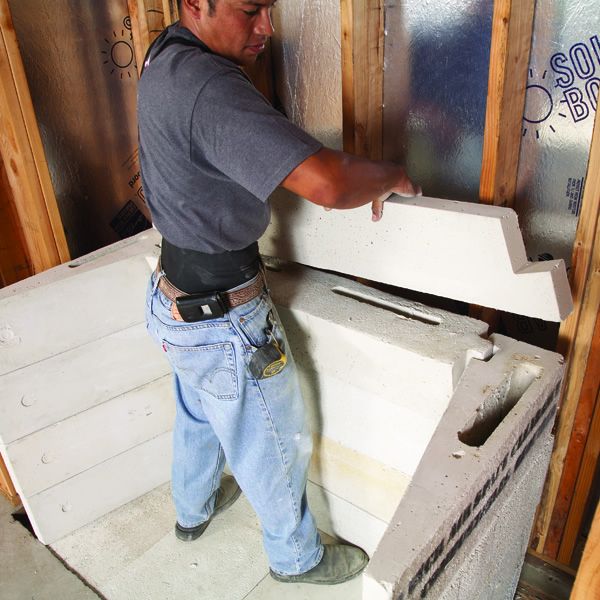

Mason-Lite prefabricated fireplace unit in cream-colored insulated material with angled chimney top, displayed in wooden framed construction setting.

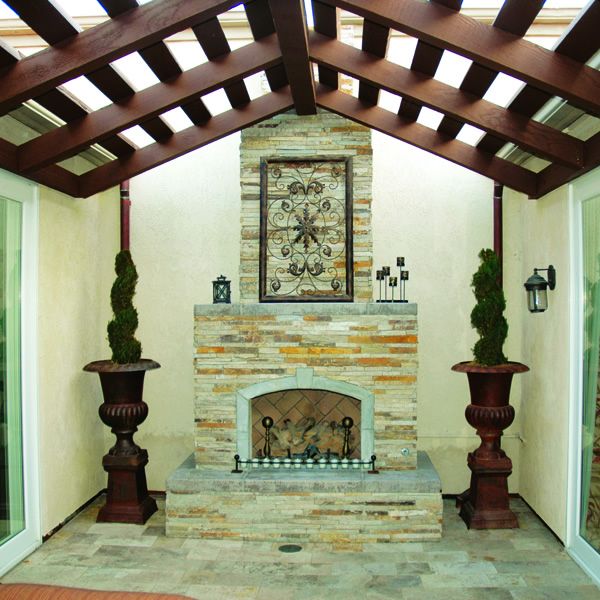

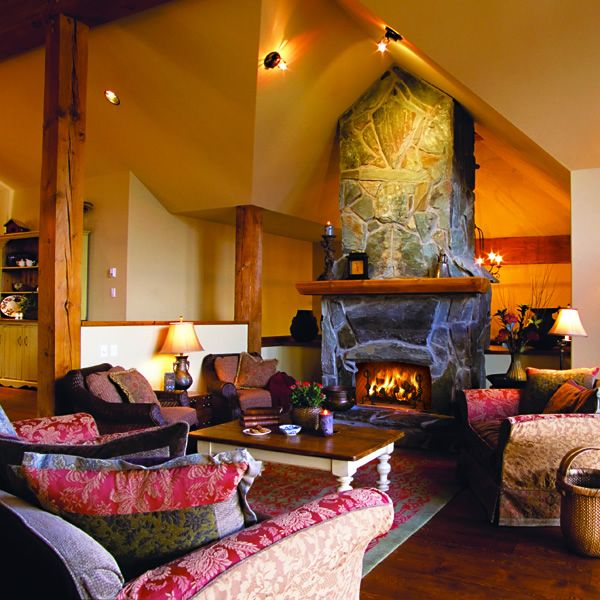

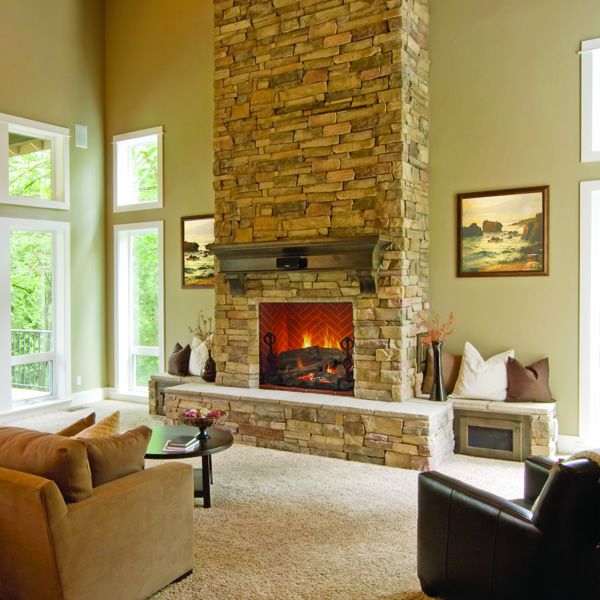

Stone fireplace with dark metal firebox insert, featuring remove if not obvious pattern stone surround and wooden or material mantel in warm-lit interior setting.

Electric fireplace insert with realistic flame effect, black frame, mounted in tan brick fireplace surround with white mantel in living room setting.

Outdoor chimney fireplace with black metal housing, flat top design, and active flames, set in a garden patio area surrounded by seating.

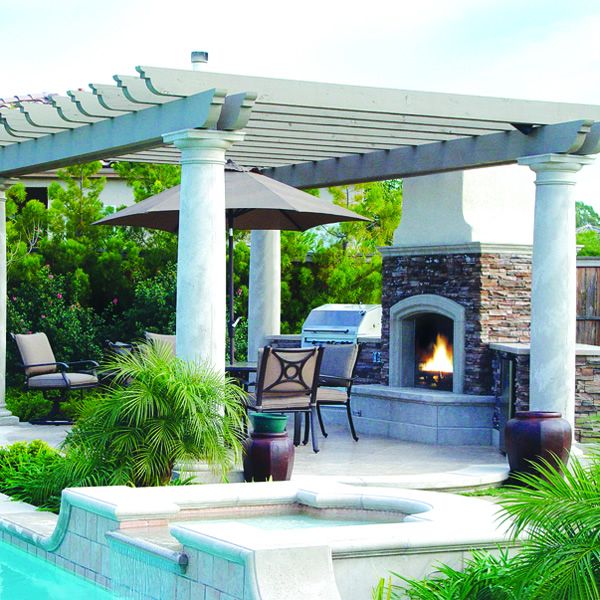

Modern white metallic pergola with lattice roof panels and four supporting columns, installed over patio with lounge furniture and outdoor fireplace

Dark wooden or material pergola with lattice roof panels and exposed beams, featuring integrated skylights for outdoor shade structure.

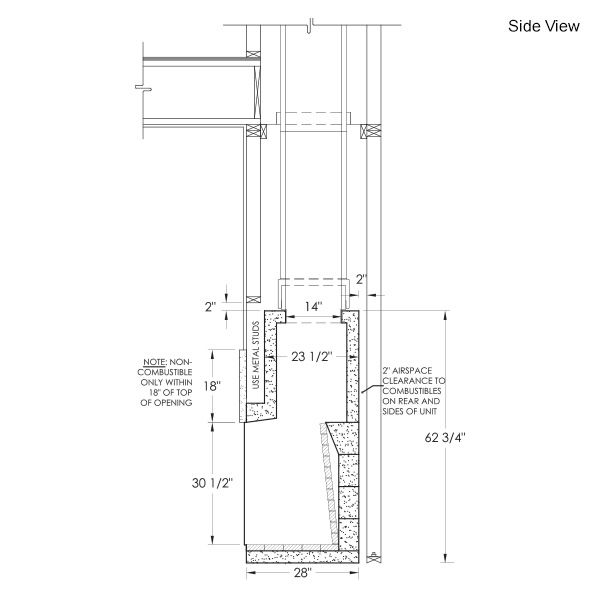

Technical side view schematic of built-in fireplace insert showing dimensions, clearance requirements, and installation specifications including 28" w

Concrete and tile shower base, 46 inches wide by 21 inches deep, with sloped floor and 7-inch curbs on sides, top view technical drawing showing dimen

Tapered storage cabinet with three shelves, 53 inches wide and 62 3/4 inches tall, featuring a trapezoidal design that narrows toward the top.

NFI Certified Experts on staff to assist you CALL: 800.919.1904

The industry’s leading fire knowledge base LEARN MORE ONLINE

Free Freight Shipping on this product HOW SHIPPING WORKS

Wood

49" Pre-cast Masonry Firebox Kit - Wood Burning

by Mason-Lite

Item # M46600005

FAQs

49" Masonry Arch

$416.00

Quantity must be 1 or greater

Woodhaven Black Outdoor Firewood Rack - 8'

$250.95

Quantity must be 1 or greater

Enervex Chimney Fan - RS12 - 14.6"x14.6"

$3,930.00

Quantity must be 1 or greater

12 Section Indoor Chimney Extension System

$1,676.00

Quantity must be 1 or greater

This Item Ships Freight Learn More

Ships Within 7 to 10 Business Days

FREE Freight Shipping

$5,450.00

QTY

Quantity must be 1 or greater

Dimensions/ Installation

Product Details

You will be reassured to know that the 49" Pre-cast Masonry Firebox Kit - Wood Burning is a masonry fireplace option that is lightweight and simple to install compared to other masonry fireplace kits. Pre-cast from modular concrete at half the cost, this firebox is not only lighter than the leading competition, but up to 70 percent tougher as well, boasting a refractory strength of 3500 PSI. All pieces and components are proudly manufactured and distributed in the United States of America, complying with UL 127 and UL 103 chimney standards. This firebox is ICC-ES listed.

With proper care, the entire firebox can be completed in less than two hours, rather than a traditional installation that can last up to three weeks. For those who prefer to keep their fireplace wood burning only, the knock-out is easily mortared off with the included concrete plug—for those who are after the convenience of a propane or natural gas fuel line, no on-sight drilling will be required.

The base is pre-drilled to make rebar installation easy, and the included 50 lb. bucket of dry mortar provides everything you need to complete the project. Upgrading your hearth from a basic metal firebox to an artistic stonework creation, this unit comes ready for assembly indoors or out—and because it weighs less than normal masonry fireplaces, it can be installed on any floor of the house without the need for extraneous reinforcement. The unit arrives designed for wood burning, with a fuel line knock-out that can be placed on either side of the firebox. For all specific measurements, please refer to the attached PDF charts.

Features:

Complies with UL 127 & UL 103 chimney component standards
Wood burning
Approved for multi-story combustible wood floor installation
Proudly made in the United States
Compatible with both indoor or outdoor construction

Eligible for a Product Warranty
Read the Details

Specifications

Fuel Type: Wood
Type: Insert/Firebox | Modular
Construction: Masonry Modular
Certification: UL Listed | UL 127 | UL 193
Material: Modular Concrete

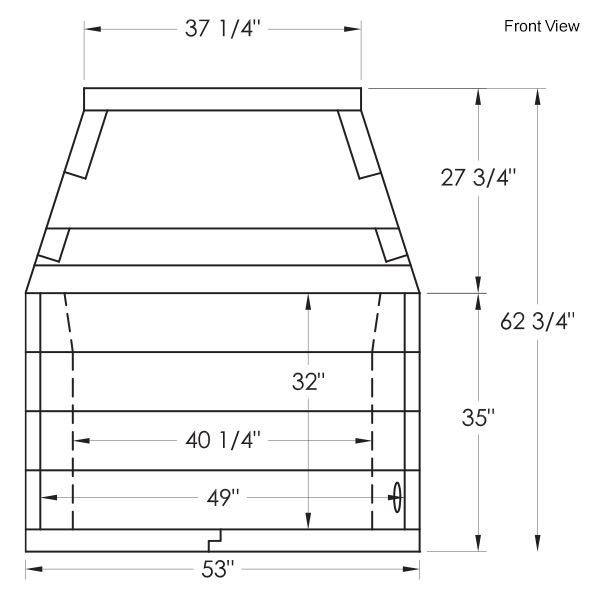

Overall Height: 62 1/2"
Overall Width: 53"
Overall Depth: 30"
Location: Indoor | Outdoor
Firebox Width: 49"
Firebox Depth: 23"
Chimney Height: 27 3/4"
Assembly Required: Required
Item Weight: 1710 lbs. | 1979 lbs. | 2453 lbs.

NFI Certified Experts on staff to assist you CALL: 800.919.1904

The industry’s leading fire knowledge base LEARN MORE ONLINE

Free Freight Shipping on this product HOW SHIPPING WORKS

FAQs

Q: Do I need a damper? A: A damper is not required but can be added if you would like one.

Q: How does chimney attach? A: A metal chimney would attach to an anchor plate. A masonry chimney would attach using mortar.
