Elbow Kit includes 2 Elbows and 1 Elbow Strap. Use for offsets around obstructions such as rafters, ridgepoles, or joists. May have two pairs of elbows, if needed. Offsets greater than 30º are not permitted in accordance with UL 103 standards. Elbows...
See All Product DetailsProduct Details

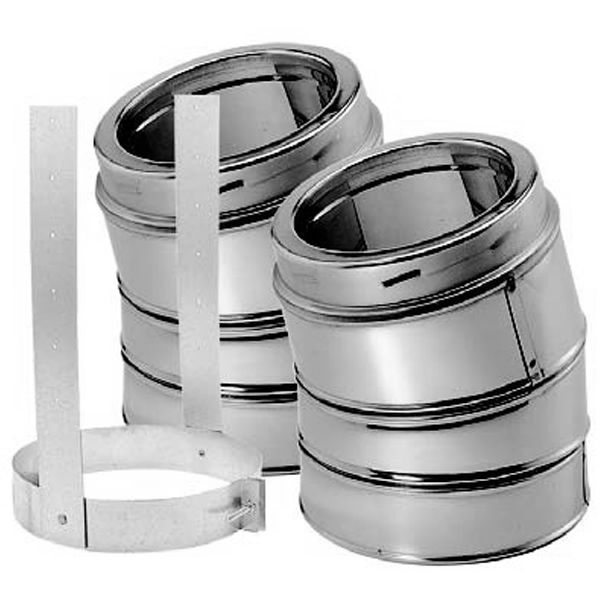

Elbow Kit includes 2 Elbows and 1 Elbow Strap.
Use for offsets around obstructions such as rafters, ridgepoles, or joists. May have two pairs of elbows, if needed. Offsets greater than 30º are not permitted in accordance with UL 103 standards. Elbows swivel 360º at base (angles are not adjustable). A pair of elbows is required to return an offset chimney back to vertical.
DuraTech is a double-wall, all-fuel chimney system for used with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters or other appliances fueled by wood, oil, coal or gas, and zero-clearance fireplaces that are factory-built. This system is designed for normal continuous operation at 1000 degrees flue gas temperatures and is subjected to rigorous and stringent HT requirements of the UL standard ensuring its excellence.
Specifications
- Type: Elbow
- Inside Diameter: 8"
- Country: Canada | United States
- Certification: UL-103 | UL Listed | ULC-S604
- Outside Material: Stainless Steel
- Pipe Class: Class-A
- Clearance to Combustibles: 2"
